Larsen Manufacturing had the ability to provide powder coat painting for customers who require painted metal parts and assemblies. We are able to…

The Latest in ECO Friendly Powder Coating - Go GREEN

The Latest In ECO Friendly Powder Coating Processing - Go GREEN

Powder Coating Division

  • Larsen has recently added in house Powder Coating to its list of full-service offerings. Our system is ECO-Friendly (no iron phosphates used) and produces excellent product quality.
  • With this addition of Powder Costing service, Larsen is once again working to support a complete “Dock To Stock” mentality for its customers.
  • Added auto-spray capabilities in 2021
  • Let Larsen handle your powder coating opportunity today!

Why Choose Us?

Advanced Application Process

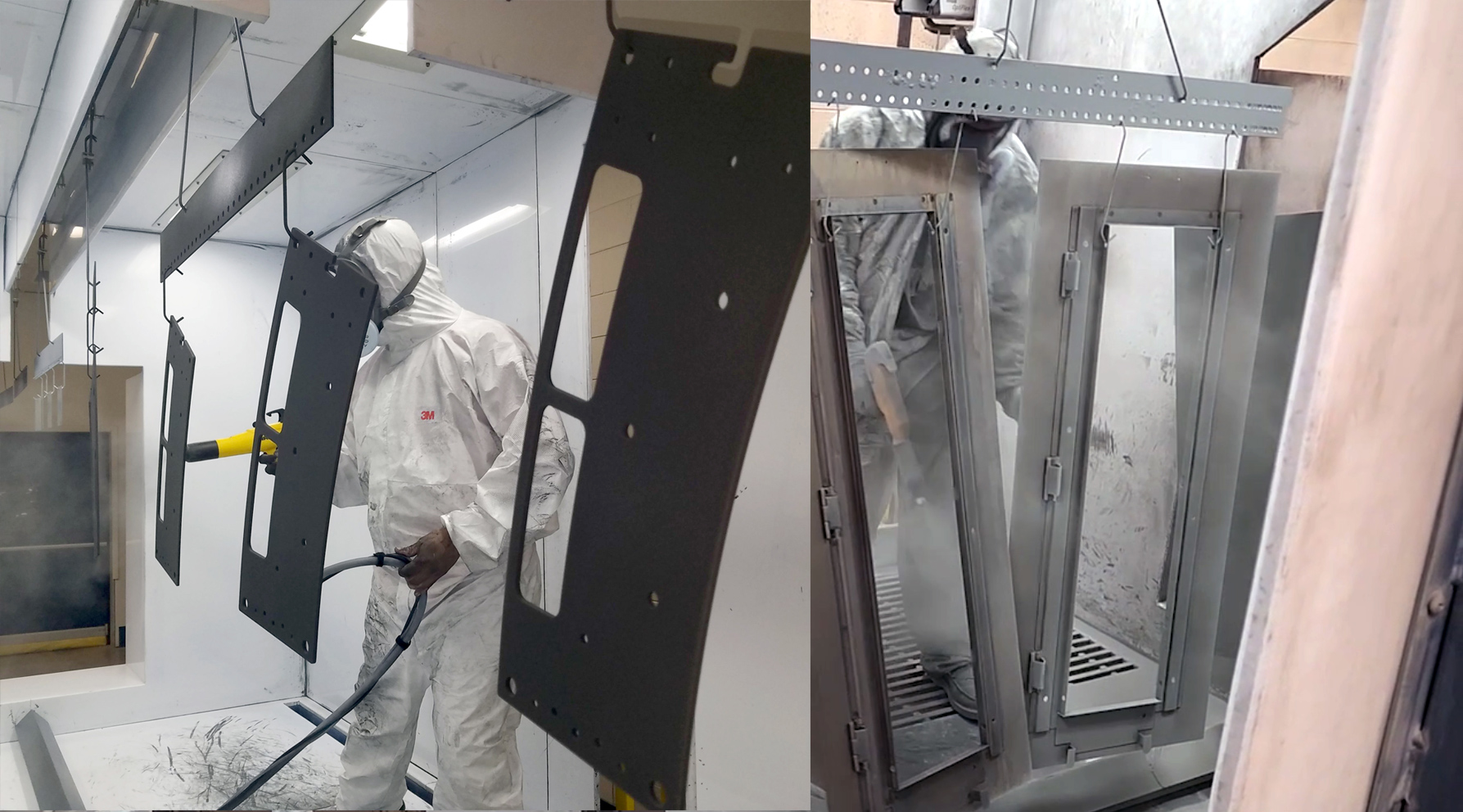

  • We powder coat using only virgin powder in a clean, separated environment, as the finish quality of your part is our top priority. Our application process is fully controlled and offers no opportunity for contamination.
  • We utilize a “Spray to Waste” application operation, with a high powder transfer efficiency to optimize cost for customers.

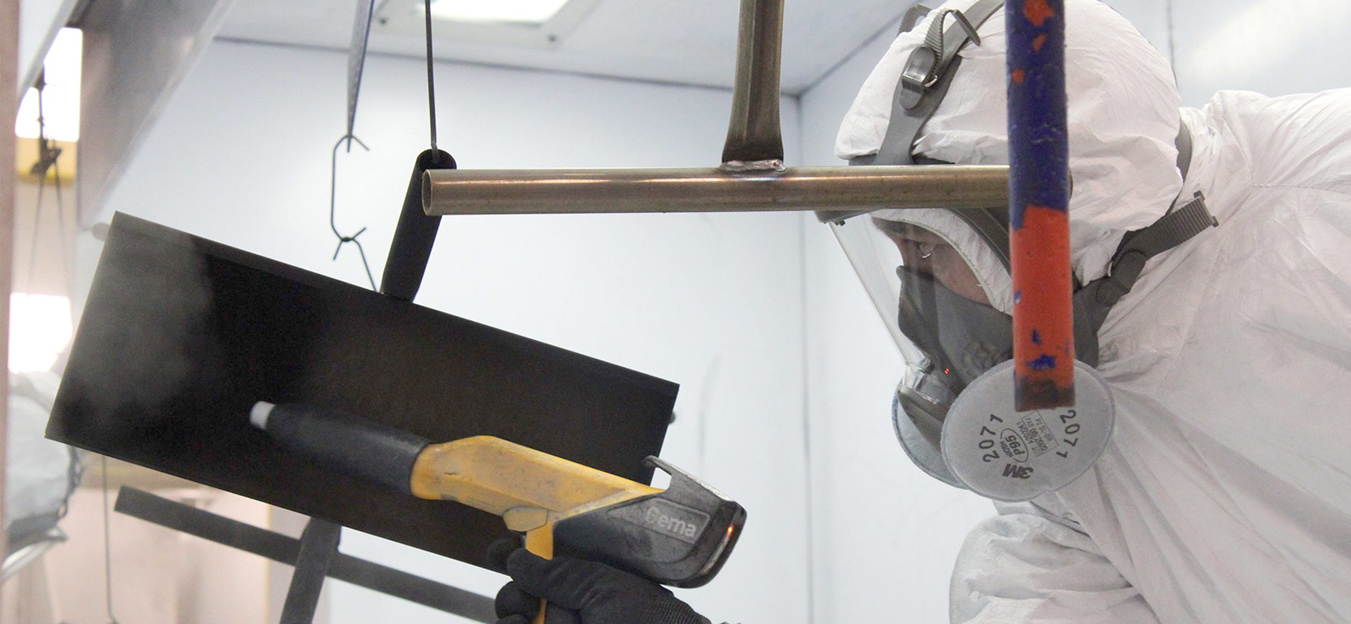

  • We currently hand paint our parts with highly skilled sprayers. The paint booth is designed to be capable of employing automated sprayers if project size and volumes dictate the need to do so.

Diverse Finish Possibilities

  • We can accommodate all colors, finish textures, and powder thicknesses specific to the performance spec needed for the part. Whether the powder coated part or assembly will be used indoors in a lab, enduring weather elements outdoors, or under the sea, we can produce to the required performance specs.
  • Our state of the art powder coat system is equipped for quick color change without contamination, to ensure run time efficiency and quality of finish.
  • We are able to offer custom color powder coating and color matching within a 1-2 week time frame.

International Quality Standards

  • Larsen Manufacturing is proud to be certified by Eagle Registrations at its highest standard of ISO 9001:2015 and IATF 16949:2016
  • This means that we not only adhere to international quality standards providing products that meet customer and regulatory requirements, but also that we continuously work to improve our processes and find new ways to enhance customer satisfaction.

Stringent Quality Control

  • We perform 8 different measures of quality control on every order to guarantee you are receiving the highest quality coating job.
  • If any failures are discovered during testing, we rework the parts to ensure every one meets the exact specifications required.

Custom, Full Service Solution

  • Larsen is able to offer a full service solution for customers with needs for powder coated metal parts and assemblies.
  • From manufacturing the metal part in the most cost effective fashion, treating it pre-paint in our true 5 stage wash system, precision masking, controlled environment powder coating, automated curing, post paint assembly, packaging, and shipping; we manage your project from beginning to end.

Part Specifications

Larsen Manufacturing Powder Paint Division has the ability to paint parts and enclosures up to 36” long, 30” wide, and 42” high, weighing up to 75 lbs. per conveyor foot.

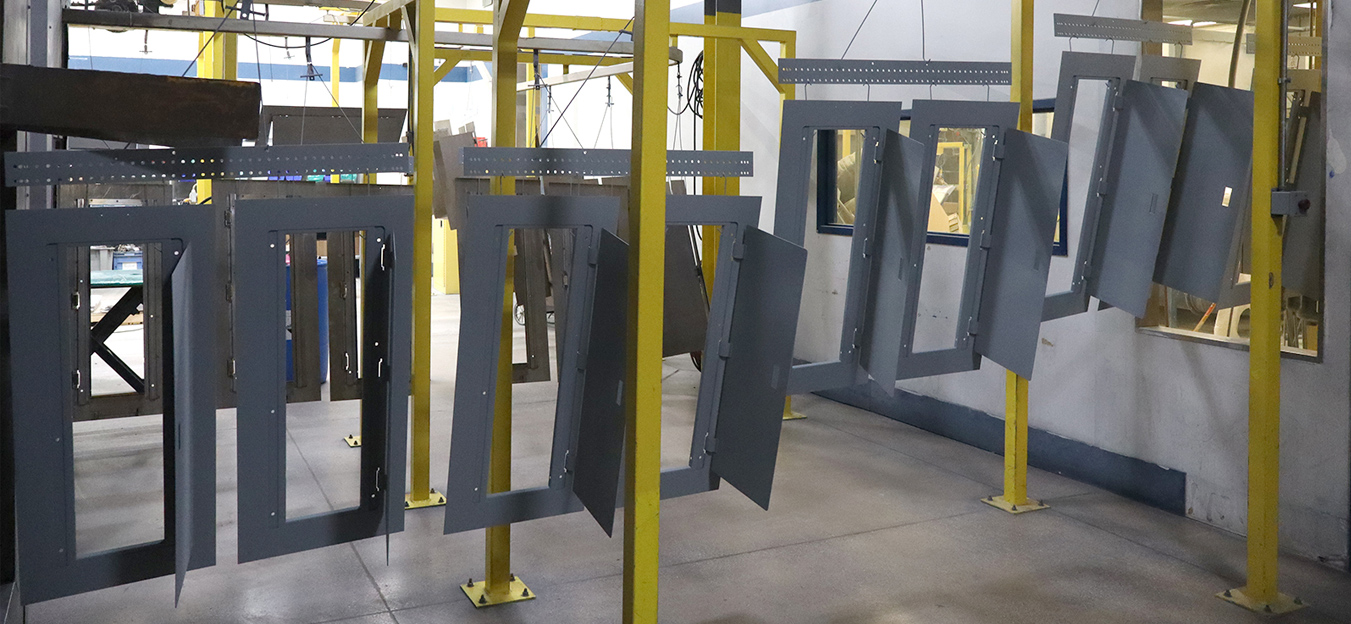

Our experienced operators are able to perform both pre-wash and post-dry masking, as well as custom hanging to ensure the correct final finish of your part or enclosure.

Some size flexibility – Need Technical Advice?

Require Technical Information

Paint Specifications

Larsen uses only high quality powder in our operation. We will not apply lower quality or recycled, potentially defective powder to your parts.

Our powder application booth is located inside a clean, separated environment, ensuring that no outside dirt or debris enters the application site. Any waste powder is contained in a downdraft system and collected outside of the building to maintain a clean air environment.

Our experienced powder paint team can accommodate customer provided paint specifications, or assist in selecting the best paint for the needed application, color, texture, or performance of the part. We utilize various powder vendors, and therefore can custom order powder in thousands of colors, textures, and finishes.

Our Main Powder Suppliers:
◦ Axalta
◦ Sherwin Williams
◦ Cardinal
◦ Protech / Trimite

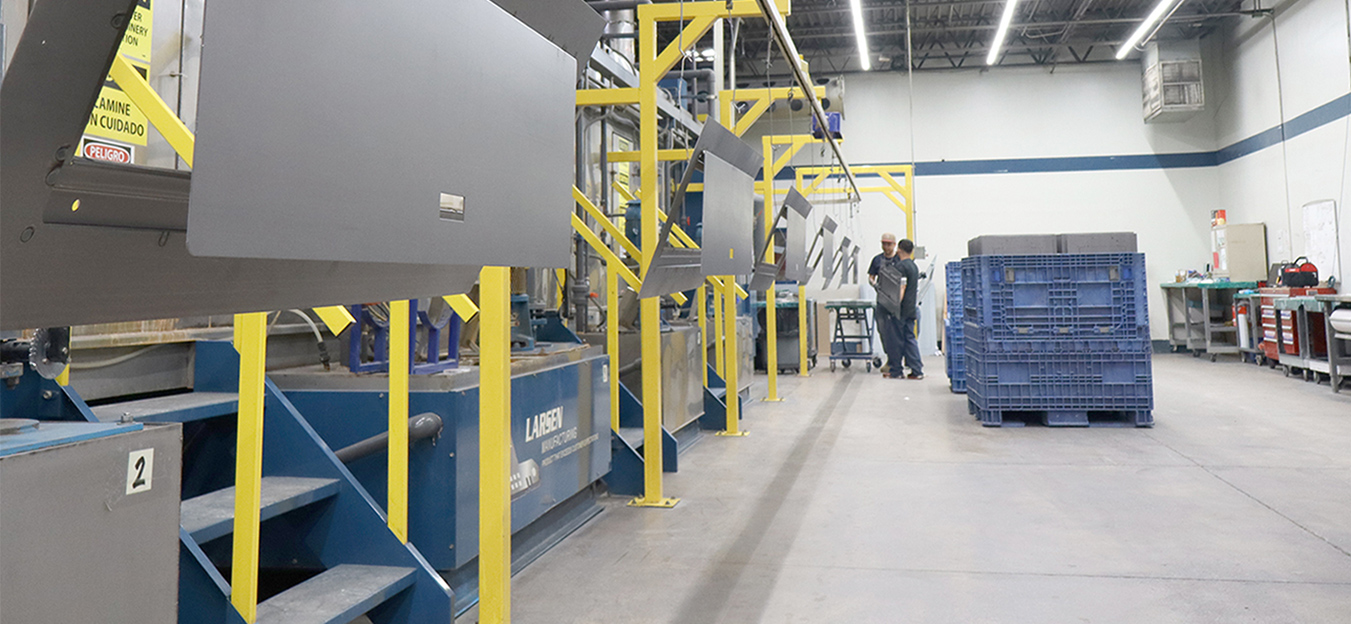

Wash System Specifications

Larsen’s Powder Paint Division has a 5 stage wash system that also includes an additional virgin R.O. rinse if required. Our wash is Phosphate-free, and the chemicals used in our wash process are the most eco-friendly options available in the industry today.

  1. Spray Clean NP5000 is strong alkaline product designed as an all purpose cleaner. It is highly effective at removing most soils associated with metal fabrication. It is designed to help control foam where saponification of soils is a problem.
  2. R.O. Rinse
  3. Americo AMB-5147 is an advanced technology conversion coating product that operates at ambient temperature. It is designed to replace iron phosphate in any type of painting operation. Americo AMB-5147 will produce a thin, tightly packed, amorphous coating on the substrate surface which yields excellent corrosion protection when used in conjunction with a quality paint system.
  4. R.O. Rinse
  5. Optional: R.O. virgin rinse (Halo Rinse)

Quality Inspection Process Specifications

Our Quality Inspection Procedures include:
◦ Appearance Test
◦ Cross Hatch Test
◦ MEK Test
◦ Pencil Test
◦ Bend Test
◦ Gloss Test
◦ Impact Test
◦ Paint Thickness Test

Learn more about our Powder Coating Capabilities
